Silk machine special chiller

Taiheng brand wire light machine special cold water machine internal contact with liquid alkali accessories have to use special anti-rust anti-corrosion materials, such as alkali pumps, evaporators, pipes, flow switches and so on. This model is mainly used for the textile industry silk light equipment liquid alkali cooling.

Product advantages
Technical parameters
Shape Diagram Size diagram

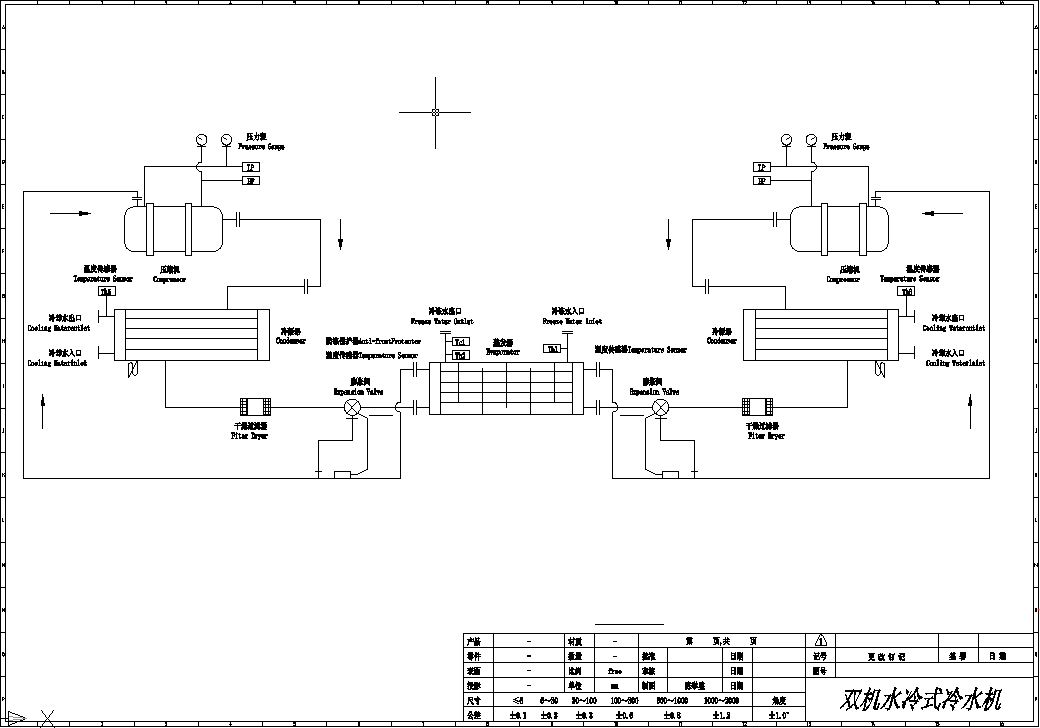

System flowchart

Unit characteristics:
1, Compressor: European and American original imported, operation noise is small, energy saving durable, long service life
2, heat exchanger: Adopt high-efficiency shell tube condenser, stainless steel plate / coil / Shell tube evaporator, heat transfer effect is good, energy saving 30 %
3, temperature controller: imported high-precision computer board, Chinese LCD display, water temperature control accuracy ± 1 °C. Customers can first be equipped with PLC control, RS485 communication functions, so as to achieve automation management.
4, frozen waterway: using stainless steel pump + stainless steel tank + stainless steel pipe, effectively eliminate the impurity caused by erosion of the pipeline, to ensure the stable operation of the unit
5, complete safety protection measures: underphase, reverse phase, overload, high and low pressure, water flow protection, ultra-temperature protection, anti-freeze protection, etc..
6, Subject to the following specifications and requirements, our company may supply non-standard products upon request.

Model		THX-		12W	15W	20W	25W	30W	40W	50W	60W
Cooling capacity		Kw(50HZ)		35.2	44.5	64.5	75.8	95.4	128.5	154.8	185.3
Cooling capacity		Kcal/h		3.272	38270	55470	65188	82044	110510	133128	159358
power		kw		10.5	13	17.2	19.9	26.5	33.75	41.5	49.5
current		A		21	26	34.4	40	53	67.5	83	99
Power Supply				3N-380V50Hz
Temp range、accuracy				5--35℃ ±1--3℃
Refrigerant model				R22/R410（Optional）/R407c（Optional）
Compressor	type			Fully enclosed vortex/Fully enclosed piston type
Compressor	power		kw	4.41*2	11.5	7.5*2	8.82*2	7.5*3	7.5*4	9*4	11*4
cooling water	water flow		m?/h	9.6	11.9	15.9	18.2	21.32	31.7	36.4	47.5
cooling water	joint		DN	40	50	50	50	65	80	80	80
chilled water	water flow		m?/h	6.6	8.5	11.3	13.1	17.06	22.8	26.2	34
chilled water	joint		DN	40	50	50	50	65	80	80	80
Tank volume			L	215	250	280	350	400	500	700	900
Freezing pump	power		kw	1.5	1.5	2.2	2.2	3.75	3.75	5.5	5.5
Freezing pump	lift		m	22	20	22	20	22	20	25	20
outline dimension	L		mm	1350	1600	1800	1900	2150	2300	2400	2400
	W		mm	850	900	900	900	1000	1100	1100	1150
	H		mm	1200	1250	1200	1200	1200	1300	1650	1650
weight			kg	450	655	850	1050	1250	1350	1550	1800
