Industrial cold air (gas) machine

Taiheng brand industrial cold air (gas) machine installation, use, maintenance is convenient and fast, for electrical cabinets, textiles, shoes, plastic workshop, warehouses, power plants, waiting rooms and other environment ventilation and cooling provides a perfect solution.

Product advantages
Technical parameters
Shape Diagram Size diagram

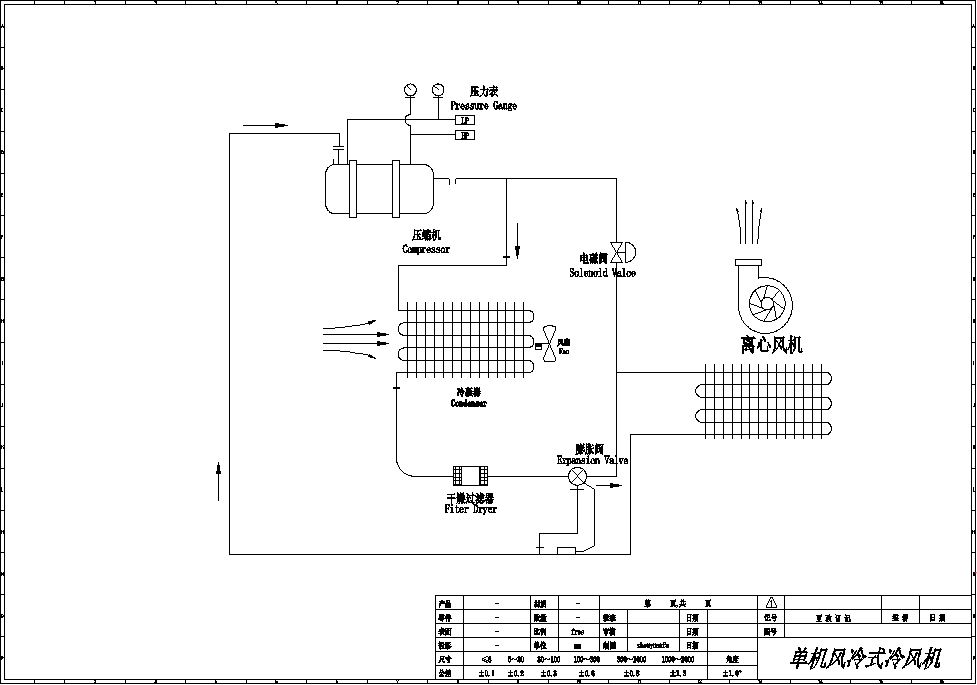

System flowchart

Unit characteristics:
1, Compressor: European and American original imported, operation noise is small, energy saving durable, long service life
2, heat exchanger: using clear water aluminum foil fin condenser, clear water aluminum foil foil evaporator, heat transfer effect is good, energy saving 30 %
3, temperature controller: imported high-precision computer board, Chinese LCD display, water temperature control accuracy ±1°C. Customers can first be equipped with PLC control, RS485 communication functions, so as to achieve automation management.
4, wind pipe: using Baosteel galvanized plate, external with 15mm insulation board to reduce the loss of cold, condensation water can be manually or automatically discharged, wind pipe interface can be made according to customer requirements
5, complete safety protection measures: underphase, reverse phase, overload, high and low pressure, water flow protection, ultra-temperature protection, anti-freeze protection, etc..
6, Subject to the following specifications and requirements, our company may supply non-standard products upon request.

Model	THX-		03AC	05AC	08AC	10AC	12AC	15AC	20AC	25AC	30AC	40AC
Cooling capacity	Kw(50HZ)		8.86	14.5	21.8	29	34.4	44.5	60	76	90	120
Cooling capacity	Kcal/h		7216	11990	18748	24089	29059	37965	50805	62952	74820	99846
power	kw		2.81	3.8	7.0	8.9	9.2	13	16.5	19.5	25	33
current	A		5.8	7.6	14	17.8	19	26	33	39	50	66
Power Supply			3N-380V50Hz
Temp range、accuracy			5--25℃ ±1--3℃
Refrigerant model			R22/R410（Optional）/R407c（Optional）
Compressor	type		Fully enclosed vortex/Fully enclosed piston type
Compressor	power	kw	2.2	3.46	3.31*2	4.22*2	4.68*2	11	8.1*2	9.15*2	8.1*3	8.1*4
Air outlet diameter		mm	100	100	100	150	150	150	200	200	200	250
blowing rate		m?/h	300	800	1500	2500	2800	3200	3800	4500	5500	6300
wind speed		m/s	8-12	8-14	8-14	8-14	8-14	8-14	8-14	8-14	8-14	8-14
outline dimension	L	mm	900	1100	1490	1490	1550	1700	1950	2050	2500	1950
	W	mm	610	730	780	780	780	830	910	850	910	1800
	H	mm	1125	1250	1460	1460	1500	1500	1600	1700	1700	1700
weight		kg	130	169	275	350	378	520	600	780	880	1260
